Guide serie MTP

Serie EA/LEA

Serie
ER/LER

Serie MTPU ER/SER

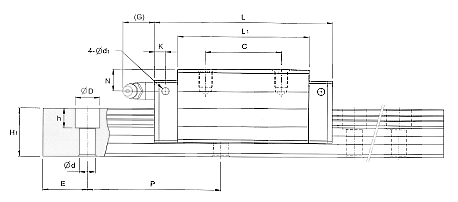

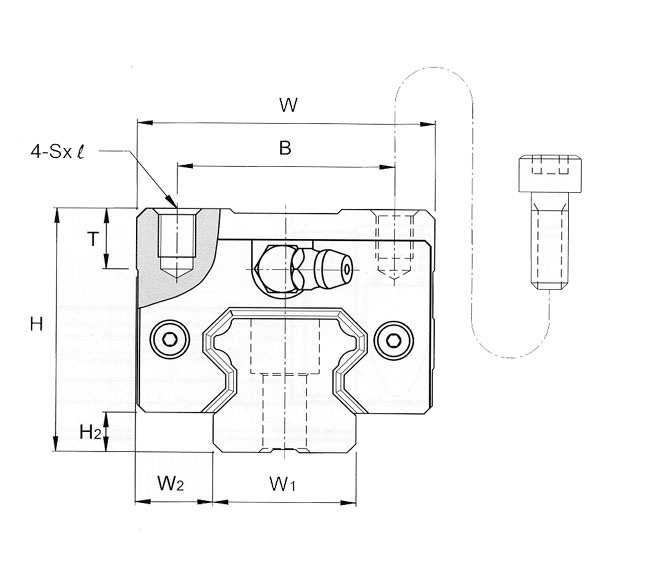

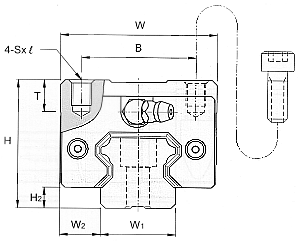

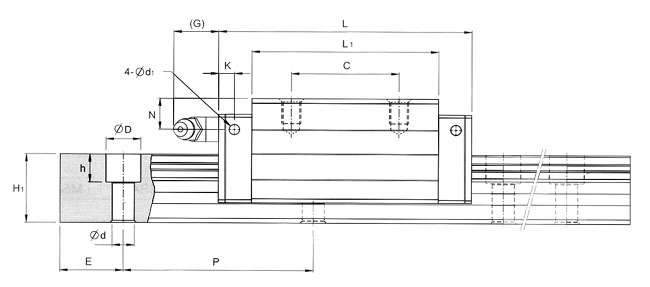

Modello Dimensioni di montaggio [mm] Dimensioni del cursore [mm]
H W L W2 H2 B C S X ℓ L1 T N G K d1 Ingrassatore
MTP 15 ER
28 34 56.3 9.5 4.2 26 26 M4x5 39.3 7.2 8.3 7 3.2 3.3 G-M4
MTP 20 ER
30 44 72.9 12 5 32 36 M5x6 51.3 8 5 12 5.8 3.3 G-M6
MTP 20 LER
30 44 88.8 12 5 32 50 M5x6 67.2 8 5 12 5.8 3.3 G-M6
MTP 25 ER
40 48 81.6 12.5 6.5 35 35 M6x8 59 10 10 12 5.8 3.3 G-M6
MTP 25 LER
40 48 100.6 12.5 6.5 35 50 M6x8 78 10 10 12 5.8 3.3 G-M6
MTP 30 ER
45 60 97 16 8 40 40 M8x10 71.4 11.7 10 12 6.5 3.3 G-M6
MTP 30 LER
45 60 119.2 16 8 40 60 M8x10 93.6 11.7 10 12 6.5 3.3 G-M6
MTP 35 ER
55 70 111.2 18 9.5 50 50 M8x12 81 12.7 15 11.5 8.6 3.3 G-M6
MTP 35 LER
55 70 136.6 18 9.5 50 72 M8x12 106.4 12.7 15 11.5 8.6 3.3 G-M6
MTP 45 ER
70 88 137.7 20.2 10 60 60 M10x17 102.5 16 20 13.5 10.6 3.3 G-PT1/8
MTP 45 LER
70 88 169.5 20.5 10 60 60 M10x17 134.3 16 20 13.5 10.6 3.3 G-PT1/8
MTP 55 ER
80 100 161.5 23.5 13 75 75 M12x18 119.5 18 21 13.5 8.6 3.3 G-PT1/8
MTP 55 LER
80 100 199.5 23.5 13 75 95 M12x18 157.5 18 21 13.5 8.6 3.3 G-PT1/8
MTP 65 ER
90 126 199 31.5 15 76 70 M16x20 149 23 19 13.5 8.6 3.3 G-PT1/8
MTP 65 LER
90 126 253 31.5 15 76 120 M16x20 203 23 19 13.5 8.6 3.3 G-PT1/8

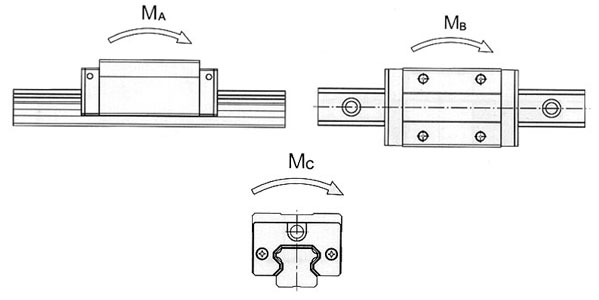

Modello Dimensioni del binario [mm] Carichi [kN] Momento  Statico [knm] Pesi
W1 H1 P E D x h x d Dinamico
C		 Statico
c0		 MA MB MC Cursore
kg		 Binario
kg/m
MTP 15 ER
15 15 60 20 7.5x5.3x4.5  11.8 18.9 0.12 0.12 0.14 0.18 1.5
MTP 20 ER
20 18 60 20 9.5x8.5x6 19.2 29.5 0.23 0.23 0.29 0.3 2.4
MTP 20 LER
20 18 60 20 9.5x8.5x6 23.3 39.3 0.39 0.39 0.38 0.39 2.4
MTP 25 ER
23 22 60 20 11x9x7 28.1 42.4 0.39 0.39 0.48 0.52 3.4
MTP 25 LER
23 22 60 20 11x9x7 34.4 56.6 0.67 0.67 0.63 0.68 3.4
MTP 30 ER
28 26 80 20 14x12x9 39.2 57.8 0.62 0.62 0.79 0.86 4.8
MTP 30 LER
28 26 80 20 14x12x9 47.9 77.0 1.07 1.07 1.05 1.12 4.8
MTP 35 ER
34 29 80 20 14x12x9 52.0 75.5 0.93 0.93 1.25 1.45 6.6
MTP 35 LER
34 29 80 20 14x12x9 63.6 100.6 1.60 1.60 1.67 1.9 6.6
MTP 45 ER
45 38 105 22.5 20x17x14 83.8 117.9 1.81 1.81 2.57 2.83 11.5
MTP 45 LER
45 38 105 22.5 20x17x14 102.4 157.3 3.13 3.13 3.43 3.7 11.5
MTP 55 ER
53 44 120 30 23x20x16 123.6 169.8 3.13 3.13 4.50 4.12 15.5
MTP 55 LER
53 44 120 30 23x20x16 151.1 226.4 5.40 5.40 6.00 4.91 15.5
MTP 65 ER
63 53 150 35 26x22x18 198.8 265.3 6.11 6.11 8.36 6.43 21.9
MTP 65 LER
63 53 150 35 26x22x18 253.5 375.9 11.84 11.84 11.84 8.76 21.9
